Process characteristics of metal L-PBF
Process characteristics of L-PBF
Highly accurate and fully dense parts
Metal Laser Powder Bed Fusion (L-PBF), is capable of producing high-quality parts and is today used across all industries for a wide range of applications.Â
This section provides an overview of the most important process characteristics.Â
What you will find in this section
Design guidelines

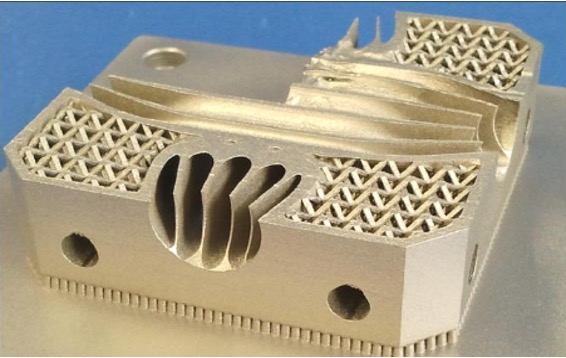

High design freedom only limited by support structures
Regarding the design of parts fabricated with L-PBF technology, several principles have to be considered. Overhanging structures must be braced by support structures to enable heat dissipation and to avoid part deformations due to internal stresses.
Horizontal holes or channels have to be supported, too, or designed in a drop shape to avoid overhangs. Minimal wall-thickness depends on the optical resolution of the machine and parameter set. In general, a wall-thickness of more than 1 mm is recommended.
Theoretically, the maximum part size depends only on the build volume of the machines and is in the range of several decimeters in all directions for standard machines up to >1m for large-scale machines. In practice, process stability and resulting residual stresses in massive metal parts have to be considered and may limit the component size.
When designing a part for L-PBF, the guidelines presented in this chapter can act as a general rule of thumb for designers. Once it comes to the actual printing of the part, machine- and process-related aspects then need to be considered and might give additional design freedom or add restrictions.Â
Materials
Laser Powder Bed Fusion material variety
For L-PBF a large variety of alloys is commercially available. The most important prerequisite is a good weldability. Furthermore, the material must be available as a powder with a suitable particle size distribution. The powder fraction is system and process specific and differs between about 20 µm to 60 µm. With an adaptation of process parameters larger as well as finer powder fractions are possible, too. Very fine powder fractions tend to agglomerate during handling and coating due to extremely fine dust particles in the distribution and should be avoided.
Typical alloys processed with L-PBF are Ti-6Al-4V, CoCr, stainless and tool steels, nickel-based superalloys, aluminum alloys and also precious metals. High purity copper is difficult in processing with today’s machine systems as the available laser wave lengths is only poorly absorbed.
Material Properties
Laser Beam Powder Bed Fusion with high material properties

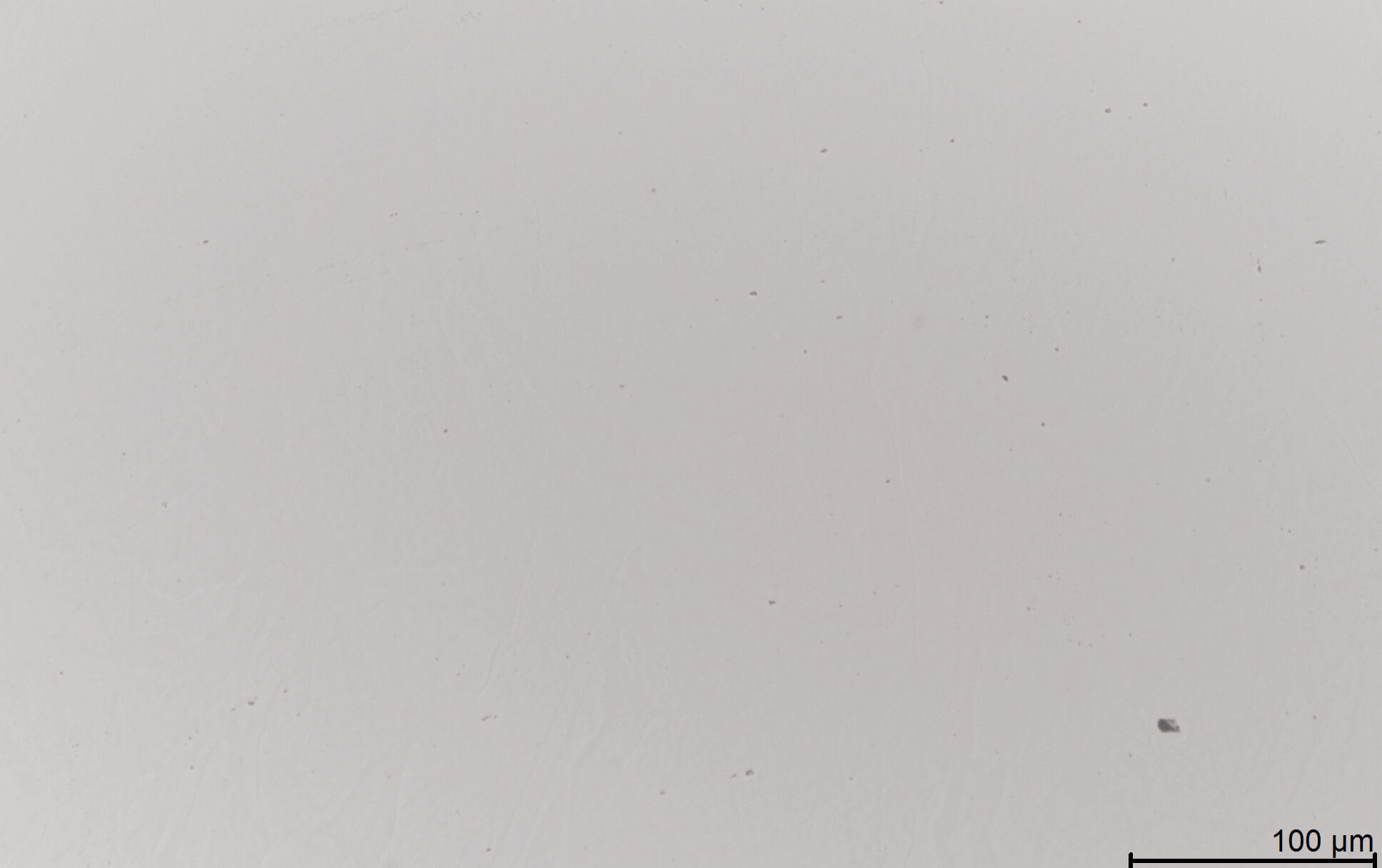

Parts fabricated with L-PBF technology exhibit similar properties as parts fabricated with conventional methods. Parts usually exceed a density of 99.7 % by far. However, the surface is rather rough due to staircase effects or adhering powder particles. Functional surfaces typically require post processing to decrease surface roughness.
Due to high temperature gradients during cooling a fine-grained microstructure is the result in the part. In comparison to conventional material properties, L-PBF exhibits in general static mechanical properties with very high strength. A brittle behavior with relatively low elongation at break may be observed. Using common heat treatments, the material properties can be influenced as desired.
Fatigue resistance is highly dependent on surface quality, i.e. surface defects, and residual porosity. Parts exhibit good fatigue strength, if post processing achieved high surface quality and residual porosity was reduced through hot isostatic pressing.
