Copper 3D Printing

Why is it so difficult to 3D print copper?

Copper is a highly desirable material in manufacturing, prized for its exceptional thermal and electrical conductivity as well as its corrosion resistance. With applications ranging from heat exchangers and induction coils to combustion chambers for space exploration, the demand for copper 3D printing has surged. However, producing complex copper components using 3D printing is no easy feat.

This article delves into the challenges and showcases how advanced technologies like Laser Powder Bed Fusion (L-PBF), Electron Beam Powder Bed Fusion (E-PBF), Material Extrusion (ME), and Binder Jetting (BJT) are overcoming these hurdles.

Why is Copper So Hard to 3D Print?

Copper’s unique properties present significant challenges for most 3D printing technologies:

High Reflectivity: Copper reflects a large portion of laser energy, especially at the wavelengths used in Laser Powder Bed Fusion (L-PBF) systems, making it difficult to achieve efficient melting.
Thermal Conductivity: Its ability to quickly disperse heat creates issues in retaining the localized energy needed to form solid, cohesive layers.
Material Oxidation: The rapid oxidation of copper can affect print quality, particularly in open systems.

Overcoming Copper’s Challenges in 3D Printing

Innovative advancements have enabled manufacturers to address these challenges. Here’s how leading technologies are making copper 3D printing possible:

Laser Powder Bed Fusion (L-PBF)

L-PBF relies on lasers to selectively melt powder. However, its reliance on standard fiber lasers, which operate at wavelengths copper reflects heavily, initially limited its effectiveness. Manufacturers now use:

Green Lasers: Companies like Trumpf have integrated green lasers, which copper absorbs more efficiently, to minimize energy loss and improve print quality.

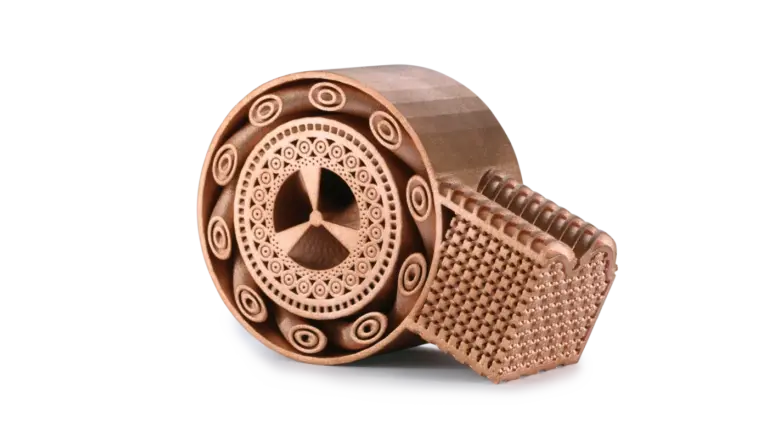

High-Power Lasers: EOS utilizes 1 kW lasers to achieve the necessary energy density for successful copper printing.

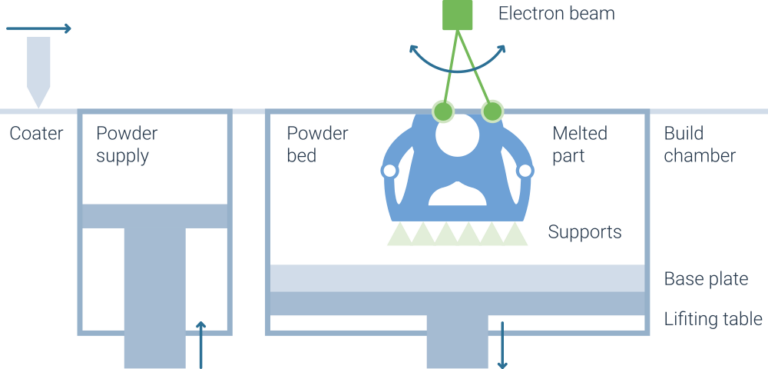

Electron Beam Powder Bed Fusion (E-PBF)

E-PBF, which uses an electron gun instead of a laser, is particularly effective for copper 3D printing. Copper readily absorbs the energy from the electron beam, making it an ideal method for high-quality prints. This technology is commonly used for aerospace applications, where precision and material properties are critical.

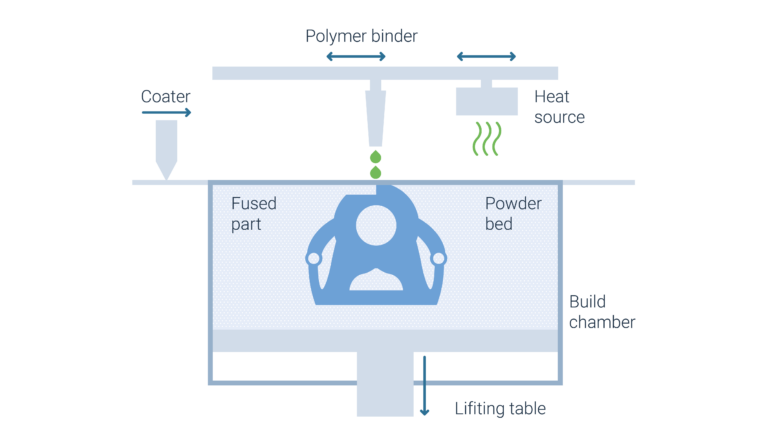

Binder Jetting (BJT)

BJT is another promising technology for copper printing. It eliminates the reliance on lasers or electron beams, sidestepping challenges related to reflectivity and thermal conductivity. Instead, a binder is selectively deposited to form parts, which are later sintered to achieve the desired density.

Material Extrusion (ME)

ME, often referred to as FDM or FFF, has been adapted for metal printing. Companies like Markforged have successfully incorporated pure copper into their systems, offering a cost-effective and accessible solution for producing functional copper components.

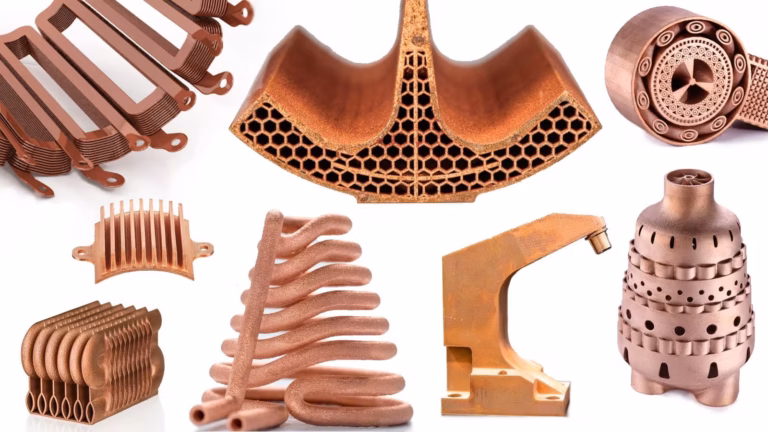

Key Applications of Copper 3D Printing

The ability to create complex geometries makes 3D printing an ideal manufacturing process for copper. Common applications include:

Heat Exchangers: Efficiently dissipating heat in high-performance systems.
Induction Coils: Used in industrial heating and energy transfer.
Combustion Chambers: Essential for space exploration and aerospace industries.
Wave Guides: Critical for telecommunications and microwave systems.
